TRANSMITTERS
Series R1605 Models
Download Spec Sheet (pdf)Series R1600 Reptile Glue-on
Slow pulse rate, low current subcutaneous implant models for minimum weight and maximum life compared to R1600 seriesModels available only in 48.00–50.66MHz, 144.06–151.98MHz, and 164.00– 167.99MHz ranges.
Technical Specifications
- Transmitter Type
- Crystal controlled 2-stage
- Calibration Tolerance
- ±2.5kHz
- Frequency Stability
- ±2.5kHz, -20ºC to 40ºC
- Pulse Rate and Width
- Typical on time 15ms, off time 1.5-4.0sec (controlled by astable circuit)
- Pulse Rate Variation
- 5%/volt, ± 20% for temperatures -20ºC to +40ºC
- Battery
- Silver Oxide
- Activation
- By removing magnet
- Encapsulation
- Electrical resin, water-proof, specific gravity: 1.12
Dimensions
| Model | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| R1612 | 5 | 6 | 7 | 8 | 9 |
| R1614 | 5 | 6 | 7 | 8 | 9 |
| R1615 | 5 | 6 | 7 | 8 | 9 |
| R1625 | 5 | 6 | 7 | 8 | 9 |
| R1635 | 5 | 6 | 7 | 8 | 9 |
| R1645 | 5 | 6 | 7 | 8 | 9 |
| R1655 | 5 | 6 | 7 | 8 | 9 |
Fig.
A.

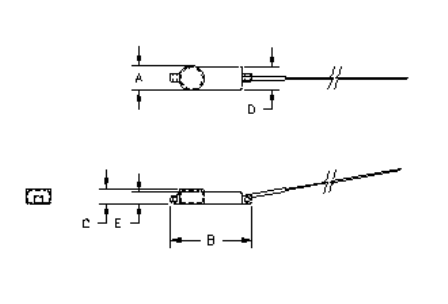

Measurement Diagram
Battery Life
| Model | Battery | Battery Capacity (days) | Weight (g) | Price Group | |||
|---|---|---|---|---|---|---|---|
| 1.5v | 15 ppm | 24 ppm | 30 ppm | 40 ppm | |||
| R1612 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1614 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1615 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1625 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1635 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1645 | 5 | 6 | 7 | 8 | 9 | .02 | F |
| R1655 | 5 | 6 | 7 | 8 | 9 | .02 | F |
Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
