GPS Systems

Highlights:

• A nominal monthly subscription fee, as well as a per-location fee, is invoiced to you on an monthly basis.
• Geo-fencing or Neolink neonate monitoring capability, either with SMS text alerts
• Typical life: >4 years @ 6 locations/day, data uplinked once every 2 days, VHF on 8 hours/day
• 100% wireless operation provides greater reliability
• Iridium provides 2-way communication capability for on-the-fly programming changes

Get your animal's data from anywhere you can access the internet.

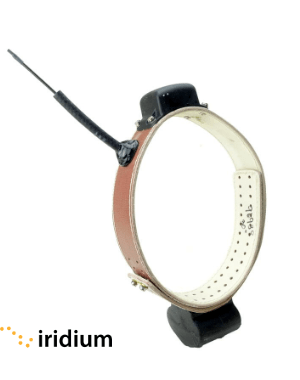

The model G5-2D uses the Iridium satellite to transmit GPS location data collected by the collar. An integrated VHF transmitter allows you to track the animal in the field. Either Neolink neonate monitoring or geo-fencing are available at a nominal cost.

Your collar's GPS location data is uploaded to ATS' managed Iridium website (atsidaq.net) according to the schedule you choose. A Google Earth data file is included. You can set-up your collars to send SMS text alerts for mortality, geo-fencing, or Neolink neo-natal birth alerts.

The G5-2D collar is programmed wirelessly using the Wildlink Comm. Module and Windows-based software. You can control how often fixes are collected and stored, how often data is uploaded to the ATS Iridium website (up to six uploads per day, each holding 22 locations), and how often the VHF beacon will transmit (this allows you to maximize battery life).

You can also remotely command program changes to the fix rate and mortality schedule, fix duration time, and Iridium data transmission interval, using the website.

Specs

Typical Life

Variable; factors affecting life include number of GPS fixes and Iridium data transmissions per day, visibility of GPS and Iridium satellites, and VHF on-time per day.

Programmability

GPS Location Data:

• Number of fixes to collect per 24 hr period, 1 hour increments
• Julian days of the year on which to collect fixes

• SMS Text alerts set-up
• GPS fix rate, 12 intervals from 10 min. to 24 hrs.
• Mortality hours, 4, 6, 8, 10, 12 hrs.
• GPS fix duration time
• Satellite transmission interval, 11 intervals from 4 hrs. to 7days
• VHF duty cycle

Data Collected/Transmitted

• Collar electronics collects and transmits to Iridium satellite: Year, julian day, time, GPS fix status, fix location (if successful), activity level, temperature, and system statistics
• ATS server generates and uploads to website: a current data file, an accumulated data file (both .txt) and a Google Earth compatible file (.kml)
• Datum: WGS84

Communication

• Programming via wireless UHF radio-link using Wildlink Comm Module, PN 17621
• Duplex satellite communication via Iridium modem

Physical

• Weight: 700 grams (1.5 lbs.)
• Size: Electronics, lower 73 mm x 69 mm x 55 mm; upper, 83 mm x 47 mm x 30 mm
• Case Material: Molded plastic, waterproof
• Battery: 2 each "D" size
• Collar Material: Sized to your specification using  6 cm. wide (2”)  Neoprene belting, within a 31 cm. to 102 cm. range of circumference

Ordering Information

• Specify collar circumference and VHF frequency range.
• The Wildlink Comm Module, PN 17621, is required, available at nominal charge.

Warranty

The G5-2D GPS collar is covered by a limited warranty for one year from time of shipment, or up to the calculated minimum battery life, whichever occurs first. This collar may not refurbished.

Features and specifications subject to change without notice.
