DART10 Dual Acoustic Radio Fish Tag | Advanced Telemetry Systems

Home / Tracking Systems / Acoustic Fish / DART10 Dual Transmitter

Support

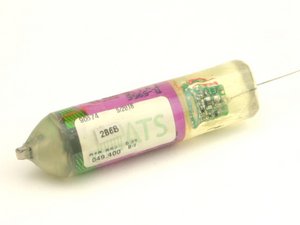

DART10 Dual Acoustic-Radio Transmitter

Available add-on to any VHF Fish Transmitter model. JSATS compatible.

Highlights:

Choose your VHF model, and specify DART10 add-on capability
Weighs only one gram above the VHF model weight specification, about 2 mm longer than dim. spec.
User activated and configurable using the portable Pinger Dish

The best of both worlds...VHF and acoustic signals combined in one tag.

Now you can conduct studies that make use of both acoustic and VHF radio signals, in order to optimize your tracking capabilities. First, choose one of our VHF fish transmitter models. We will integrate the acoustic electronics into the body of the transmitter, and add an acoustic transducer to the tip of the body of the transmitter. The VHF transmitter antenna will trail at the back of the transmitter.

Specs (acoustic signal)

Code Set: 65,536 indivdual BPSK codes
Frequency: 416.7 kHz ± 0.5%
Power output, typical: +156 dB re: 1uPa @ 1 meter
Biocompatible coating: Parylene C, 25 micron thickness
Pulse rate interval (PRI): Factory or user configurable with Pinger Dish
On/off: Acoustic coded with Pinger Dish
Label: 4 place alphanumeric code ID
Code ID: Factory or user configurable with Pinger Dish
Duty cycling: Factory or user configurable with Pinger Dish
Size: Adds 12 mm to length of existing VHF model
Weight, dry: Adds 1.0 gram to existing VHF model
Expected life: See VHF model life specification

Ordering Information

Specify VHF model, and acoustic signal PRI

Optional: Pinger Dish

Warranty

Half the calculated minimum battery life

Features and specifications subject to change without notice.

Pinger Dish used for programming and activating acoustic tags

Why ATS?

We make the BEST and most RELIABLE telemetry equipment out there, at the BEST PRICE ... period.

We GUARANTEE YOU that we will ship your product as promised, and we GUARANTEE YOU 100% SATISFACTION with our products. That means you won’t have to worry about your order, or your research. Our goal is to make your telemetry work easy, enjoyable, and successful.

Contact one of our Consultants today, and we'll make sure you have the right equipment, provide you a same day quote, and answer any questions.

Accessories

All Accessories

Select Your Model(s):

Model #	Weight	Battery Life
R1612	0.20 g	8-22 days
R1614	0.30 g	9-22 days
R1617	0.40 g	10-22 days
R1618	0.50 g	8-22 days
R1619	0.60 g	8-22 days
R1655	1.20 g	88-222 days

Not Sure?

A Project Consultant will follow up with you once you submit your quote.

Add selected to Quote
