Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.
Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.
Note on weight: Weight and dimensions are applicable to base model before customization.
Models SS300 Acoustic Transmitter and SS300P with Pressure Sensor option
May be configured using various sized batteries to meet your studies' life requirements; JSATS compatible. Available with Pressure Sensor for excellent 3D accuracy (Model SS300P).
Highlights:
- Available in a complete system: Tags, Tag Programmer, and Receiving Equipment
- Meets JSATS
Program specifications
- Weighs as little as 300 mg
- Sized as small as 10.7 x 5.0 x 2.8 mm
- User activated and configurable using the portable Pinger Dish
- Optional Pressure Sensor for highly accurate tag depth measurement (Specify Model SS300P)

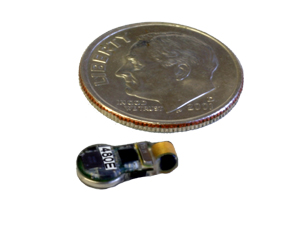

One of the smallest acoustic transmitters in the world.
The Juvenile Salmonid Acoustic Telemetry System (JSATS) was developed by the Army
Corps of Engineers and its partners to study fish behavior in freshwater and marine
environments. ATS has been manufacturing large numbers (more than 10,000 tags per
year) of acoustic tags for the JSATS program since 2007.
Through our innovative designs, the JSATS transmitter has significantly decreased
in size, increased in power output, and become easier to deploy in the field. We've
achieved these improvements while still offering another ATS trademark: low cost.
The JSATS system uses a binary phase shift keyed (BPSK) code pulse to achieve a
code set of over 65,000 individual ID's. The pulse rate interval (PRI), code ID,
and duty cycling (sleep/delayed activation) are user configurable through the use
of the highly portable ATS Pinger Dish. The pulse train contains a 7-bit Barker
code, 16-bit tag ID code, and 8-bit cyclic redundancy check (CRC). The message is
only 744 microseconds in length, so the short on-time saves power and reduces signal
collisions as compared to other standard timing code sets on the market.
ATS manufactures acoustic transmitters using strict process control procedures and
part traceability to insure a reliable product.
Specs
- Code Set
-
65,536 indivdual BPSK codes
- Frequency
-
416.7 kHz ± 0.5%
- Power output, typical
-
+156 dB re: 1uPa @ 1 meter
- Biocompatible coating
-
Parylene C, 25 micron thickness
- Pulse rate interval (PRI)
-
Factory or user configurable with Pinger Dish
- On/off
-
Acoustic coded with Pinger Dish
- Label
-
4 place alphanumeric code ID
- Code ID
-
Factory or user configurable with Pinger Dish
- Duty cycling
-
Factory or user configurable with Pinger Dish
- Pressure Sensor option
- Max. error +/- 0.5 meters over 0-204 meter range
-
- Max. Pressure: 26,214 mbar (380 psi = 267 meters)
-
- Accuracy: 25 cm (typical @ 25 deg. C)
-
- Resolution: 0.5 cm
- Size (SS300)
-
10.7 mm long x
5.2 mm wide x 3.0 mm high
- Weight, dry (SS300)
-
300 mg
- Tag sizing & expected life, 337 type battery
-
| Interval (sec) |
Expected life (days)
Model SS300 / SS300P
|
| 3 |
23 / 7 |
| 5 |
37 / 12 |
| 10 |
68 / 22 |
SS300: 300 mg, 10.7 x 5.2 x 3.0 mm
SS300P: 500 mg, 14.2 x 5.3 x 4.5 mm
- Tag sizing & expected life, 379 type battery
-
| Interval (sec) |
Expected life (days)
Model SS300 / SS300P |
| 3 |
45 / 15 |
| 5 |
73 / 24 |
| 10 |
136 / 45 |
SS300: 430 mg, 11.9 x 6.3 x 3.7 mm
SS300P: 600 mg, 15.6 x 7.5 x 4.5 mm
- Tag sizing & expected life, 392 type battery
-
| Interval (sec) |
Expected life (days)
Model SS300 / SS300P
|
| 3 |
127 / 42 |
| 5 |
206 / 68 |
| 10 |
382 / 127 |
SS300: 965 mg, 14.4 x 8.5 x 5.3 mm
SS300P: 1050 mg, 17.2 x 8.3 x 5.4 mm
Ordering Information
Specify SS300 Standard Tag, or SS300P with Pressure Sensor added; battery type/size; desired PRI
Warranty
One year parts and labor on materials and workmanship.
Features and specifications subject to change without notice.
