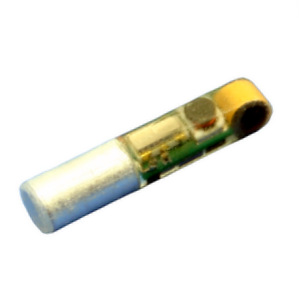

SS400 Acoustic Transmitter (Injectable)
The latest, and smallest acoustic tag available; easily insertable into fish; JSATS compatible.
Highlights:
- Part of a complete system: Tags, Tag Programmer, and Receiving Equipment
- Cylindrical form factor allows tag to be quickly inserted into fishes body cavity
- Smallest acoustic tag available that meets life and output requirements of the JSATS
Program
- Weighs 216 mg, Size 15.00 x 3.38 mm
- User activated and configurable using the portable Pinger Dish
The smallest acoustic transmitter in the world ... another ATS first.
The Juvenile Salmonid Acoustic Telemetry System (JSATS) was developed by the Army Corps of Engineers and the Pacific Northwest National Laboratory (PNNL) to study fish behavior in freshwater and marine environments. ATS has been manufacturing large numbers of acoustic tags for the JSATS program since 2007 (over 10,000 tags some years) .
This new and innovative design
(ATS model SS400) for an injectable JSATS transmitter has significantly decreased the size and weight of the original design (model SS300). It has also shown to increase survival rate of tagged fish, as discussed in this article seen in Nature.com.
The JSATS system uses a binary phase shift keyed (BPSK) code pulse to achieve a
code set of over 65,000 individual ID's. The pulse rate interval (PRI), code ID,
and duty cycling (sleep/delayed activation) are user configurable through the use
of the highly portable ATS Pinger Dish. The pulse train contains a 7-bit Barker
code, 16-bit tag ID code, and 8-bit cyclic redundancy check (CRC). The message is
only 744 microseconds in length, so the short on-time saves power and reduces signal
collisions as compared to other standard timing code sets on the market.
Another
article from Nature.com is available with complete details of the injectable tag and its design.
Specs
- Code Set
-
65,536 indivdual BPSK codes
- Frequency
-
416.7 kHz ± 0.5%
- Power output, typical
-
+156 dB re: 1uPa @ 1 meter
- Biocompatible coating
-
Parylene C, 25 micron thickness
- Pulse rate interval (PRI)
-
Factory or user configurable with Pinger Dish
- On/off
-
Acoustic coded with Pinger Dish
- Label
-
4 place alphanumeric code ID
- Code ID
-
Factory or user configurable with Pinger Dish
- Duty cycling
-
Factory or user configurable with Pinger Dish
- Size
-
15.00
mm long x 3.3 mm diameter
- Weight, dry
-
210 mg
- Expected life, BR306 type battery
| Interval (sec) |
Expected run time (days) |
| 3 |
48 |
| 5 |
71 |
| 10 |
111 |
- Expected life, 2@ 379 type battery (1.0 gr, 17.5 x 6.3 x 6.3 mm)
| Interval (sec) |
Expected run time (days) |
| 3 |
108 |
| 5 |
159 |
| 10 |
247 |
- Expected life, 2@ 392 type battery (2.2 gr, 20.0 x 8.5 x 8.5 mm)
| Interval (sec) |
Expected run time (days) |
| 3 |
302 |
| 5 |
446 |
| 10 |
694 |
Ordering Information
Specify PRI
Optional: Pinger Dish
Warranty
Half the calculated minimum battery life
Features and specifications subject to change without notice.
