Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.
Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.
Note on weight: Weight and dimensions are applicable to base model before customization.

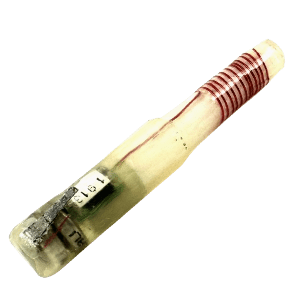

F1020D VHF DART Tag
VHF transmitter Designed to work with PNEU-Dart Transmitter RDD (414 Design) Housing and Merlin Housing Adaptor.
Highlights:
ATS has worked with our researchers and designed a VHF transmitter to work with existing PNEU-Dart system. Please contact your local representative to learn more.
Specs
- Transmitter type:
- Crystal controlled 2-stage
- Calibration tolerance:
- ± 2.5kHz
- Frequency stability:
- ± 2.5kHz, -20°C to 40°C
- Pulse rate and width:
- Typical on ume 20ms, off time 1100ms (controlled by astable circuit)
- Pulse rate variation:
- 5%/volt, ±20% for temperatures -20°C to +40°C
- Battery:
- Silver Oxide
- Activation:
- By removing magnet
- Encapsulation:
- Electrical resin, water-proof, specific gravity: 1.12

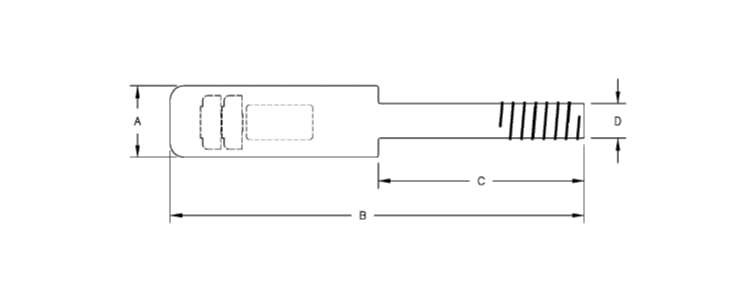

Dimensions
Battery Life
|
Model
|
Weight (g)
|
Price Group
|
Battery Capacity(days)
|
| | | 30 ppm* |
40 ppm |
55 ppm |
|
| F1020D | 3.8 | B |
63 | 36 | 27 |
*15 ms pulse width
Warranty
Warranty life is 50% of battery capacity.
Features and specifications subject to change without notice.
