RECEIVERS

Highlights:

• Digital signal technology provides 2x the range
• 4 MHz range, 4000 channels scannable
• Integrated GPS logs location data
• 3 modes: Unattended, Aerial, Manual
• Remote data communication option available
• Specify a 4 MHz range between 30 - 52 MHz or 140 - 220 MHz when ordering

Modes & Operator Inputs

Aerial Mode

• Frequency
• Table #(1-12)
• Pulse rate filter (1-4 pulse rates)
• Scan rate
• GPS (On/Off)

PC Mode

• Off-load data
• Upload and download frequency tables (Excel format)

Clone Mode

• Transfer tables from one R4500SD (Master) to another R4500SD

Staionary Mode

• Frequency
• Table # (1-4 pulse rates)
• Pulse rate filter (1-4 pulse rates)
• Scan time
• Time out
• Store rate
• Antennas scanned (1-8)
• Goes (On/Off)
• Reference transmitter (Yes/No)
• Reference transmitter store rate

Manual Mode

• Manual operation

Display (4 line by 20 characters)

Aerial Mode

• Channel # and frequency
• Period/pulse rate
• GPS status
• Signal strength
• Battery status

Stationary Mode

• Channel # and frequency
• Date and time
• Antenna #
• Pulse rate
• Signal strength

Connections

Antenna

BNC socket

Headset

Receptacle for 0.25" phone plug

Computer Interface

USB connector

GPS

SMA socket

Aux. Port

DB15 for external digital control

Ext. power/batt. charger

4-pin circular

Power

12 volts DC nominal

200 mA (GPS off); 350 mA (GPS on)

Internal

4Ah Nickel-Metal Hydride; 8-hours operating time with GPS on

External

10 to 18 V DC external

Pysical

Size

13 cm wide x 20 cm long x 21 cm high (5” x 8” x 3”)

Weight

2.5 kg (5.6 lbs)

Accessories (included)

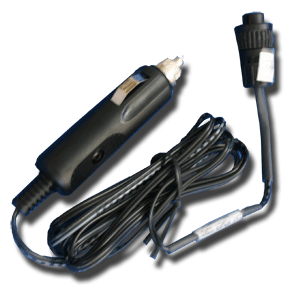

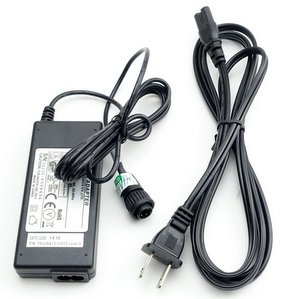

External power cord, battery charger, Win Rec off-load software, PC download cable, instruction manual

Accessories (optional)

Headset, GPS antenna, clone cable, padded case, external battery pack

Environmental

Operating temperature

-20 degrees C to 50 degrees C

Storage temperature:

-70 degrees C to 60 degrees C

Humidity

95% non-condensing

Warranty

One year parts and labor on materials and workmanship

Features and specifications subject to change without notice.

Why an ATS Receiver?

ATS designs receivers for wildlife research tracking, and nothing else. There are many manufacturers of receivers that are not specifically designed for wildlife tracking, like wide band, handie-talkie types. These types of "generic" receivers will make your tracking more difficult.

Our receivers are built to withstand the rigors of the field. Our customers regularly send us 25 year old receivers for bench checks that are still in excellent operating condition.

We have designed a coding scheme shown to be 99% accurate in detecting coded transmitters. "False positives" are virtually eliminated. In various conference talks we have attended, we have seen that our competitor's coding architecture is nowhere near as accurate as our code-decode scheme.
