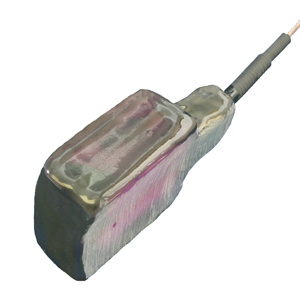

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage (“B” suffix denotes 3-stage)

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C	D	E
R2220	32	55	17	16	11
R2240B	32	76	17	22	12

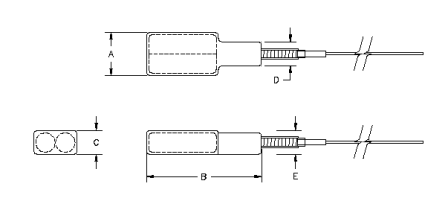

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
