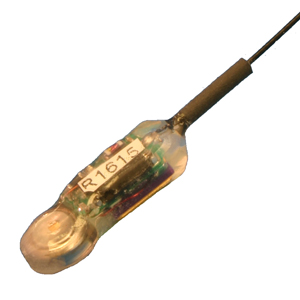

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 15ms, off time 1.5-4.0sec (controlled by astable circuit)

Pulse Rate Variation

5%/volt, ± 20% for temperatures -20ºC to +40ºC

Battery

Silver Oxide - NOTE: Smallest models have very short shelf-life.

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C	D	E
R1614	5.4	12.5	2.3	3.2	4
R1615	5.4	13	3	4	5
R1625	6	14	3	4	5
R1635	6	14	4	4	5
R1645	7	15	4	4	5
R1655	8	16	5	4	5

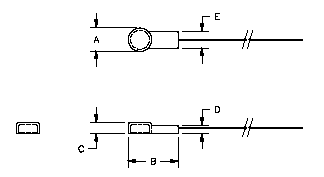

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
