TRANSMITTERS

Series R1100 Models

Model # Weight Battery Life
4 g 174 - 404 days


Download Spec Sheet (pdf)

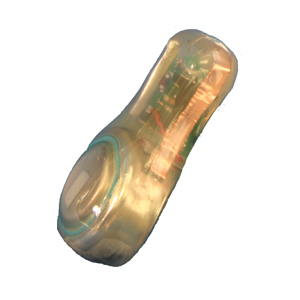

R1100 Reptile Glue-on/Implant

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by astable circuit)
Pulse Rate Variation
5%/volt, ± 20% for temperatures -20°C to +40°C
Battery
Silver Oxide
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCDE
R117014347710

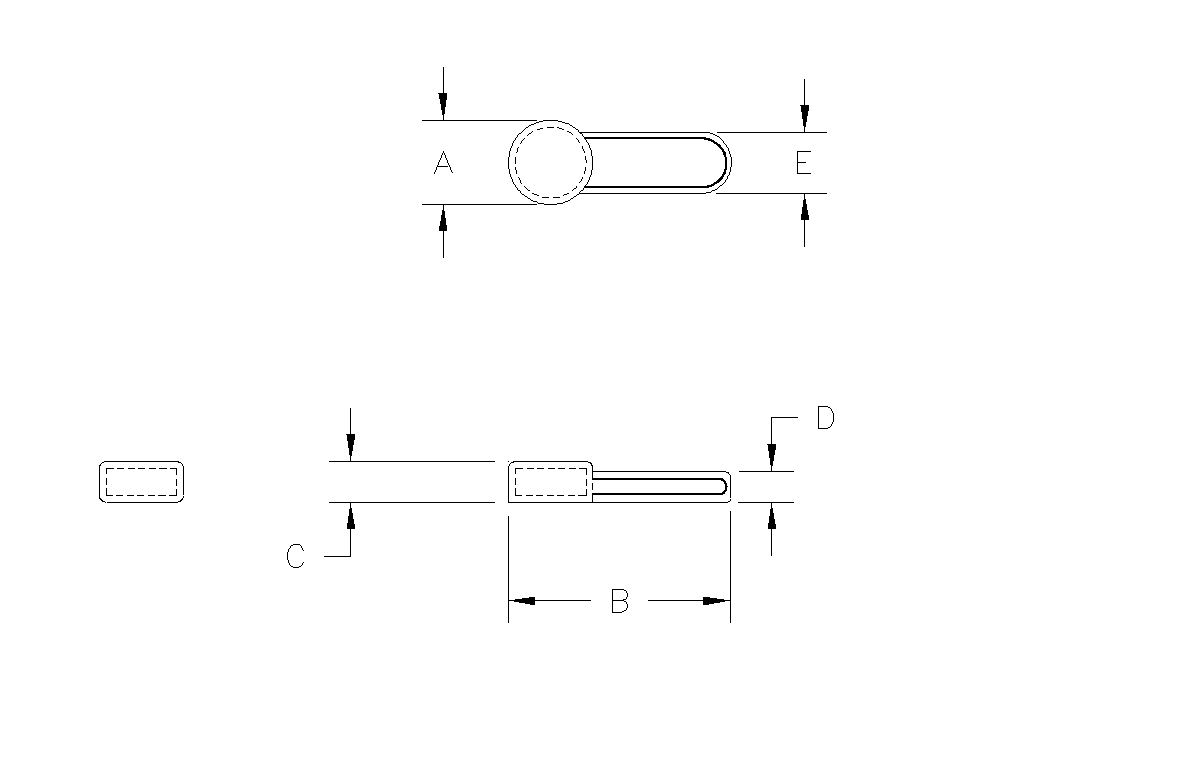

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
1.5V30 ppm40 ppm55 ppm
R11703574B404237174

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
