Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.
Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.
Note on weight: Weight and dimensions are applicable to base model before customization.

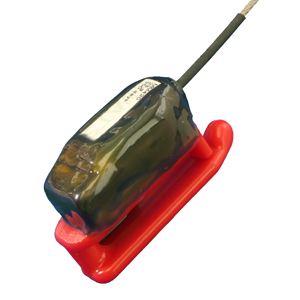

MM400 Marine Mammal Temple Tag
Technical Specifications
- Transmitter Type
-
Crystal controlled 2-stage
- Calibration Tolerance
-
±2.5kHz
- Frequency Stability
-
±2.5kHz, -20ºC to 40ºC
- Pulse Rate and Width
-
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
- Pulse Rate Variation
-
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
- Battery
-
Lithium
- Activation
-
By removing magnet
- Encapsulation
-
Electrical resin, water-proof, specific gravity: 1.12. Coated with USP Class VI material

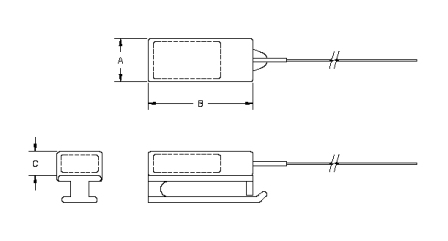

Dimensions
Battery Life
|
|
Model
|
Battery
|
Weight (g)
|
Price Group
|
Battery Capacity ( days )
|
Factors other than battery capacity may reduce life. Warranty life is 50% of battery
capacity, maximum of one year.
