TRANSMITTERS

Series M4100 Models

Model # Weight Battery Life
460 g 2816 - 3796 days


Download Spec Sheet (pdf)

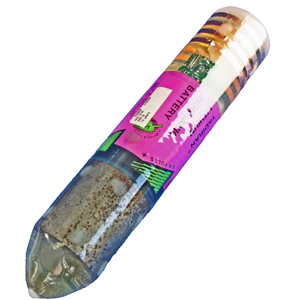

M4100 Mammal Rumen Implant

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uCv; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABC
M4120B3817540

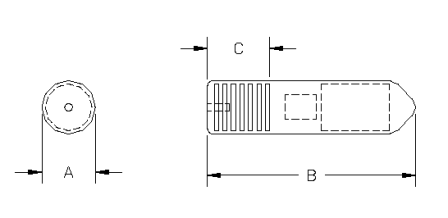

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V40 ppm55 ppm
M4120BD460E37962816

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
