TRANSMITTERS

Series M4000 Models

Model # Weight Battery Life
110 g 1086 - 1416 days
112 g 400 - 540 days


Download Spec Sheet (pdf)

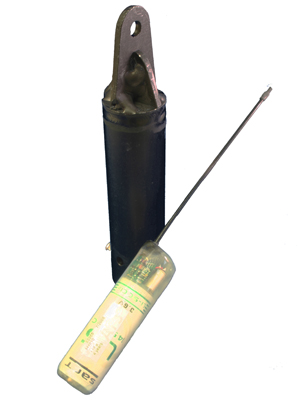

M4000 Mammal Trap Monitor

"B" suffix indicates enhanced range model.

The trap monitor is used to signal when a trap or other device has been moved. After it is triggered, the pulse rate doubles, and a pulse train is sent to indicate elapsed time since the triggering event. The transmitter is contained in an aluminum housing with a hole at one end for attachment.

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCD
M4010271456817
M4010B271456817

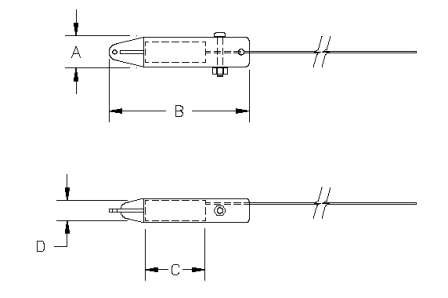

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity ( days ) *
3.5V40 ppm55 ppm
M4010AA110F14161086
M4010BAA112F540400

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
