TRANSMITTERS

Series M3600 Models

Model # Weight Battery Life
27 g 502 - 897 days
32 g 666 - 1191 days


Download Spec Sheet (pdf)

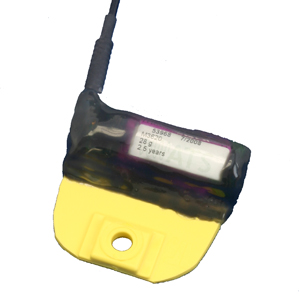

M3600 Mammal Ear Tag

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCDE
M36102042421737
M36202042521742

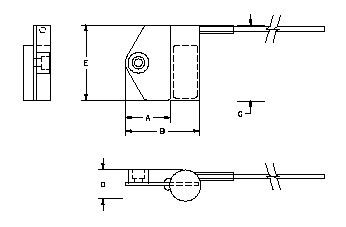

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V35 ppm40 ppm55 ppm
M36101/2AA27C897654502
M36202/3AA32C1191869666

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
