TRANSMITTERS

Series M3500 Models

Model # Weight Battery Life
38 g 647 - 1156 days


Download Spec Sheet (pdf)

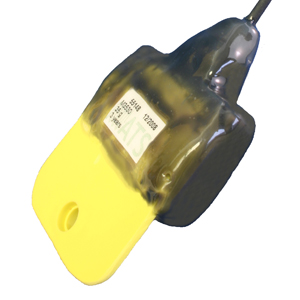

M3500 Mammal Tail Tag

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCD
M353048201345

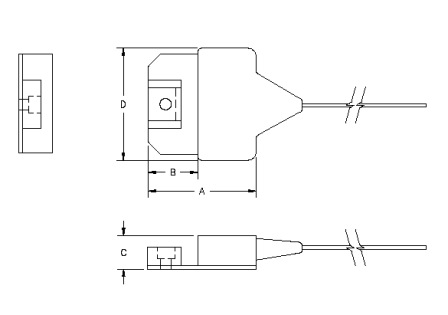

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V35 ppm40 ppm55 ppm
M353016M38D1156843647

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
