TRANSMITTERS

Series M2700 Models

Model # Weight Battery Life
1250 g 5500 - 2000 days


Download Spec Sheet (pdf)

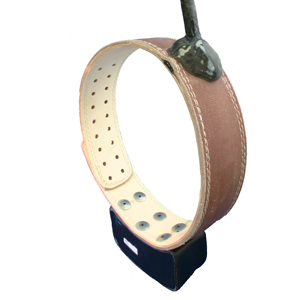

M2700 Mammal Collar, X-Large

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCD
M2710B115786076

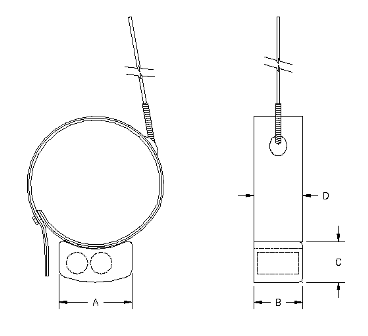

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V
M2710BD1250J

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
