TRANSMITTERS

Series M2500 Models

Model # Weight Battery Life
340 g 1185 - 1598 days
500 g 2816 - 3796 days


Download Spec Sheet (pdf)

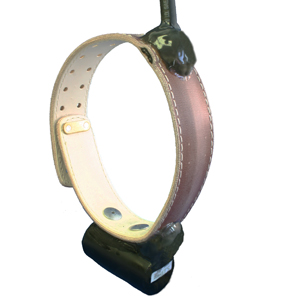

M2500 Mammal Collar, Medium

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCD
M2510B32406840
M2520B45539040

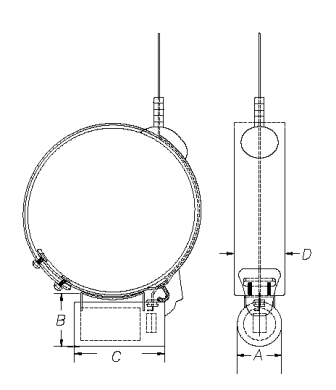

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V40 ppm55 ppm
M2510BC340G15981185
M2520BD500G37962816

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
