TRANSMITTERS

Series M2200 Models

Model # Weight Battery Life
85 g 1086 - 1416 days
90 g 400 - 540 days
160 g 3215 - 4194 days
160 g 1185 - 1598 days
190 g 2816 - 3796 days


Download Spec Sheet (pdf)

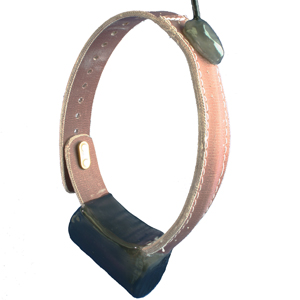

M2200 Mammal Collar, Medium

"B" suffix indicates enhanced range model.

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCD
M221062172319
M2210B62172319
M222062303525
M2220B62303525
M2230B75374225
Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V40 ppm55 ppm
M2210AA85D14161086
M2210BAA90D540400
M2220C160E41943215
M2220BC160E15981185
M2230BD190E37962816

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
