TRANSMITTERS

Series M1700 Models

Model # Weight Battery Life
9 g 56 - 100 days
11 g 140 - 250 days
16 g 202 - 362 days


Download Spec Sheet (pdf)

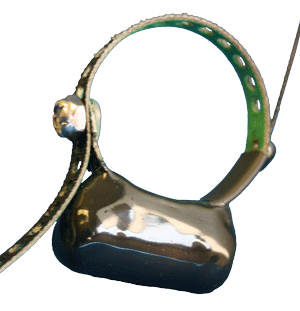

M1700 Mammal Collar, X-Small

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABC
M1720131523
M1730131529
M1740131537

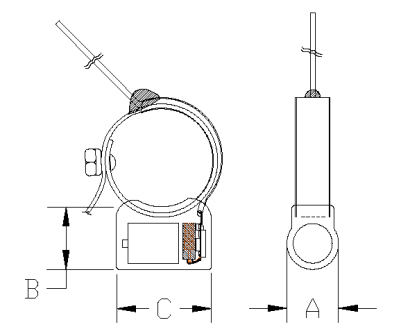

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V35 ppm40 ppm55 ppm
M172010-129E1007356
M173010-1811E250182140
M174010-2516E362264202

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
