TRANSMITTERS

Series M1600 Models

Model # Weight Battery Life
3.8 g 70 - 164 days
4.6 g 85 - 198 days
5.4 g 110 - 257 days
6 g 189 - 441 days


Download Spec Sheet (pdf)

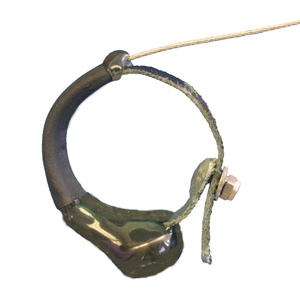

M1600 Mammal Collar, X-Small

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABC
M161011722
M162013724
M163013824
M164013924

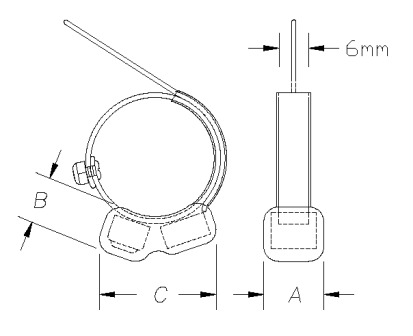

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
1.5V30 ppm40 ppm55 ppm
M16103943.8B1649670
M16203894.6B19811685
M16303865.4B257150110
M1640357HC6B441258189

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
