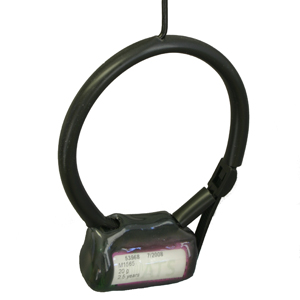

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12. Coated with USP Class VI material

Dimensions

Model	Dimensions (mm)

	A	B	C
M1525	13	23	16
M1535	13	30	16
M1545	13	40	16
M1555	19	38	19
M1565	16	36	22
M1575	18	36	24
M1585	16	52	22
M1585B	16	52	24

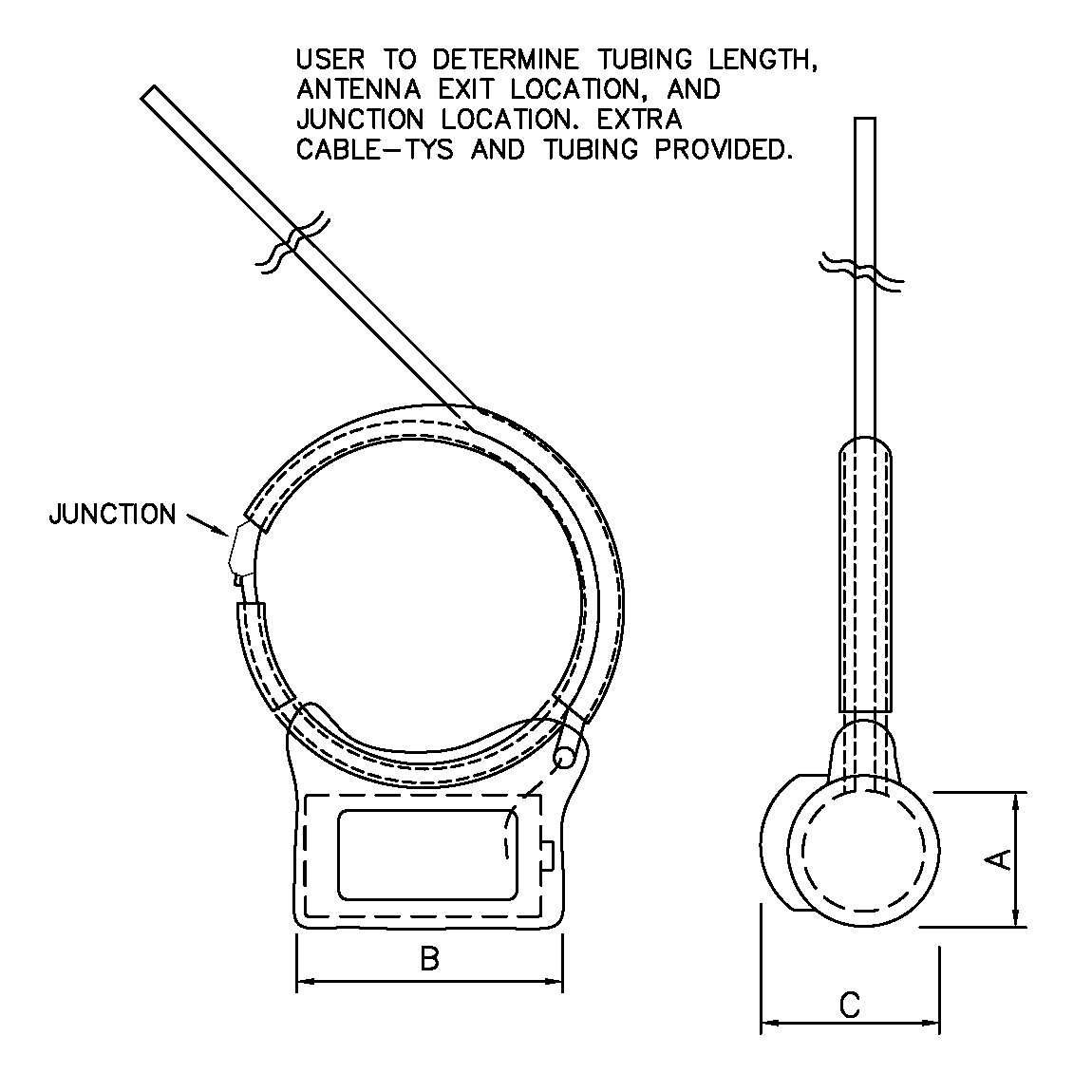

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
