TRANSMITTERS

Series F2100 Models

Model # Weight Battery Life
14 g 140 - 250 days
16 g 299 - 535 days
18 g 11 - 218 days
28 g 647 - 1156 days
30 g 238 - 472 days


Download Spec Sheet (pdf)

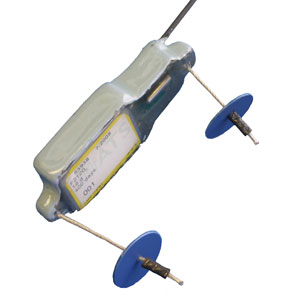

F2100 Fish Ext. Mount

"B" suffix indicates enhanced range model.

Technical Specifications

Transmitter Type
Crystal controlled 2-stage (“B” suffix denotes 3-stage)
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12. Coated with USP Class VI material

Dimensions

Model Dimensions (mm)
ABC
F2110214211
F2120215211
F2120B215611
F2130276411
F2130B276411

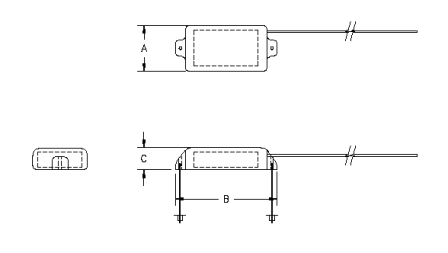

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity (days)
3.5V35 ppm40 ppm55 ppm
F21103PN14C250182140
F21207PN16C535390299
F2120B7PN18C21814811
F213016M28C1156843647
F2130B16M30C472321238

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
