Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.
Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.
Note on weight: Weight and dimensions are applicable to base model before customization.

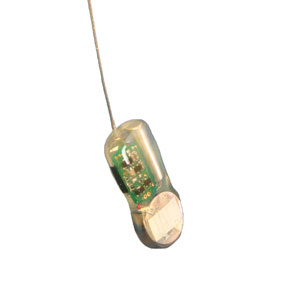

F1505 Fish Implant
Slow pulse rate, low current models for min weight and max life compared to F1500 series.
Available only in 48-49, 144-151, and 164-167 MHz ranges.
Technical Specifications
- Transmitter Type
-
Crystal controlled 2-stage
- Calibration Tolerance
-
±2.5kHz
- Frequency Stability
-
±2.5kHz, -20ºC to 40ºC
- Pulse Rate and Width
-
Typical on time 15ms, off time 1.5-4.0sec (controlled by astable circuit)
- Pulse Rate Variation
-
5%/volt, ± 20% for temperatures -20ºC to +40ºC
- Battery
-
Silver Oxide - NOTE: Smallest models have a very short shelf-life.
- Activation
-
By removing magnet
- Encapsulation
-
Electrical resin, water-proof, specific gravity: 1.12

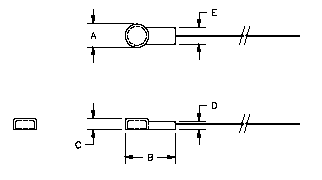

Dimensions
Battery Life
|
|
Model
|
Battery
|
Weight (g)
|
Price Group
|
Battery Capacity ( days )
|
Factors other than battery capacity may reduce life. Warranty life is 50% of battery
capacity, maximum of one year.
