TRANSMITTERS

Series F1500 Models

Model # Weight Battery Life
1 g 14 - 34 days
1.3 g 25 - 58 days
1.7 g 40 - 94 days
2 g 70 - 164 days
2.2 g 68 - 158 days
2.8 g 85 - 198 days
3.1 g 110 - 257 days
3.6 g 189 - 441 days


Download Spec Sheet (pdf)

Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.

Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.

Note on weight: Weight and dimensions are applicable to base model before customization.

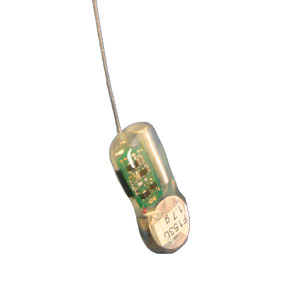

F1500 Fish Implant

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1.1-2.0sec (controlled by astable circuit)
Pulse Rate Variation
5%/volt, ± 20% for temperatures 0ºC to +40ºC
Battery
Silver Oxide
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABCDE
F1510718559
F1520819559
F1530920669
F15401122559
F1550920759
F15601324559
F15701324659
F15801324769
Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity ( days )
1.5V30 ppm40 ppm55 ppm
F15103791A342014
F15203771.3A583425
F15303921.7A945540
F15403942A1649670
F15503932.2A1589368
F15603892.8A19811685
F15703863.1A257150110
F1580 3.6A

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
