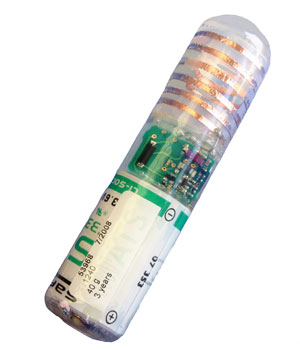

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage (“B” suffix denotes 3-stage)

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12. Coated with USP Class VI material

Dimensions

Model	Dimensions (mm)

	A	B	C
F1205	12	51	20
F1210	12	57	20
F1215	12	64	20
F1225	12	74	20
F1230	18	68	25
F1235	18	78	25
F1235B	20	80	25
F1240	20	78	25
F1245	18	93	25
F1245B	20	97	25
F1250B	29	104	30

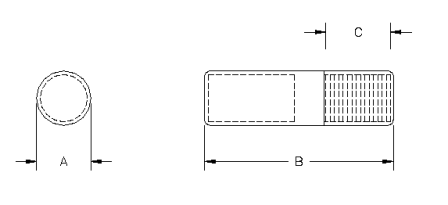

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
