TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by astable circuit)

Pulse Rate Variation

5%/volt, ± 20% for temperatures -20°C to +40°C

Battery

Silver Oxide

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C
F1010	8	20	9
F1020	9	21	9
F1030	10	22	9
F1040	10	23	9

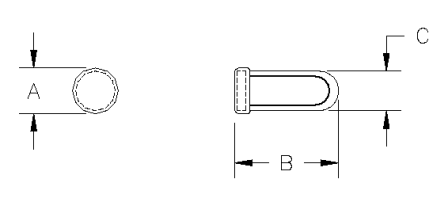

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
