Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.
Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.
Note on weight: Weight and dimensions are applicable to base model before customization.
Technical Specifications
- Transmitter Type
-
Crystal controlled 2-stage
- Calibration Tolerance
-
±2.5kHz
- Frequency Stability
-
±2.5kHz, -20ºC to 40ºC
- Pulse Rate and Width
-
Typical on time 20ms, off time 1100ms (controlled by astable circuit)
- Pulse Rate Variation
-
5%/volt, ± 20% for temperatures -20°C to +40°C
- Battery
-
Silver Oxide
- Activation
-
By removing magnet
- Encapsulation
-
Electrical resin, water-proof, specific gravity: 1.12

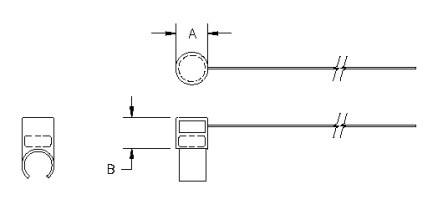

Dimensions
Battery Life
|
|
Model
|
Battery
|
Weight (g)
|
Price Group
|
Battery Capacity ( days )
|
Factors other than battery capacity may reduce life. Warranty life is 50% of battery
capacity, maximum of one year.
Why ATS?
We make the BEST and most RELIABLE telemetry equipment out there, at the BEST PRICE
. . . period.
We GUARANTEE YOU that we will ship your product as promised, and we GUARANTEE YOU
100% SATISFACTION with our products. That means you won’t have to worry about your
order, or your research. Our goal is to make your telemetry work easy, enjoyable,
and successful.
Contact one of our Consultants today, and we'll make sure you have the right
equipment, provide you a same day quote, and answer any questions.
