TRANSMITTERS

Series A1200 Models

Model # Weight Battery Life
5.8 g 74 - 131 days
6.5 g 99 - 175 days
8.5 g 130 - 229 days
11.5 g 253 - 445 days
15.5 g 452 - 796 days


Download Spec Sheet (pdf)

Note on dimensions: All dimensions shown are for maximum reference only. Actual dimensions will vary but will be less than the maximum reference dimension.

Note on battery life: Battery life shown is maximum life based on controlled testing at 20°C/25°C. Actual life will vary with environmental temperature. Warmer operating/storage environments will decrease battery life.

Note on weight: Weight and dimensions are applicable to base model before customization.

A1200 Avian Backpack

Technical Specifications

Transmitter Type
Crystal controlled 2-stage
Calibration Tolerance
±2.5kHz
Frequency Stability
±2.5kHz, -20ºC to 40ºC
Pulse Rate and Width
Typical on time 20ms, off time 1.1-1.7sec (controlled by uC; Programmed options available)
Pulse Rate Variation
0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC
Battery
Lithium
Activation
By removing magnet
Encapsulation
Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model Dimensions (mm)
ABC
A1220233510
A1230233511
A1240273911
A1250263713
A1260273716

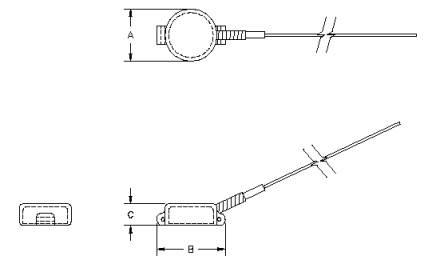

Fig. A. Measurement Diagram

Battery Life

Model Battery Weight (g) Price Group Battery Capacity ( days )
3.0V35 ppm40 ppm55 ppm
A122020255.8C1319674
A123020326.5C17512999
A124024308.5C229169130
A1250235411.5C445328253
A1260247715.5C796586452

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
