TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

± 2.5kHz

Frequency Stability

± 2.5kHz, -20°C to 40°C

Pulse Rate and Width

Typical on time 20ms, off time 1.5-2.0sec (controlled by astable circuit)

Pulse Rate Variation

5%/volt, ± 20% for temperatures -20°C to +40°C

Battery

Silver Oxide

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C	D	E
A1015	5	15	3	5	4
A1025	6	16	3	5	4
A1035	6	16	4	5	4
A1055	7	17	4	5	4
A1065	8	18	5	5	4

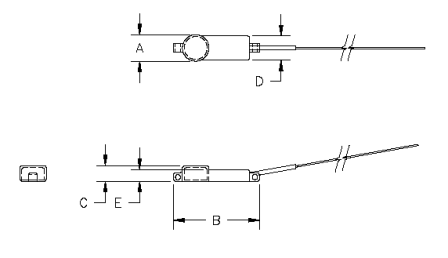

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
