various antenna models used for radio telemetry animal tracking

ANTENNAS

H style antenna used for radio telemetry wildlife tracking

H Antennas

ATS Part Number Frequency Range
146-150 MHz
148-152 MHz
153-157 MHz
158-162 MHz
163-167 MHz
170-174 MHz

H Type Antenna

Lightweight and easy to carry for ground tracking.

Highlights:

  • Lightweight and easy to carry for ground tracking.
  • Custom tuned to user-specified 4 MHz range.
  • Includes 1.5 meter cable.

Standard Package Includes:

Antenna (ATS # is frequency dependent), 1.52 m (5 ft) RG58 cable (ATS #11606), 12” metal handle with grip (ATS #14912) -OR- 24” handle for aircraft (ATS #13917).

Antenna Specs

Gain
7 dBi
Beamwidth (horizontal)
3db
Beamwidth (vertical)
3db
Weight, metal handle
0.3 kg (0.55 lb)
Weight, metal handle, 24 in.
0.7 kg (1.6 lbs)
Width
25.4 cm (10 in.)
Max. Element length
100 cm (39.4 in.)

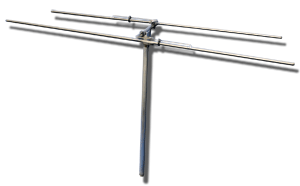

view of an H style antenna with metal handle. Used for radio telemetry wildlife tracking from an aircraftH Antenna with 24 inch metal handle for aircraft use.

Quick Antenna Tips

There are two basic antenna types: directional and non-directional (omni-directional). Directional antennas are typically Yagi type, non-directional are dipole type.

The reception pattern of a directional type antenna is shown below, left. The pattern for an omni-directional antenna is shown on the right.


view of the directional pattern of a yagi antenna used for radio telemetry wildlife tracking view of the omni-directional pattern of a yagi antenna used for radio telemetry wildlife tracking
  • The more elements on the antenna, the better the gain and effective range (they are also less portable!).
  • VHF systems are line of sight; the higher the antenna is above the ground, the better the range.
  • All ATS antennas include a standard length coaxial cable; longer lengths are available.

We offer a complete line of antennas for radio tracking; we can give you advice if you’re not sure what kind to use.
